Highlights
The hotend’s core parts are mainly composed of copper alloy, which has the advantage of better heat conduction.
Overall high-temperature resistance up to 500°C

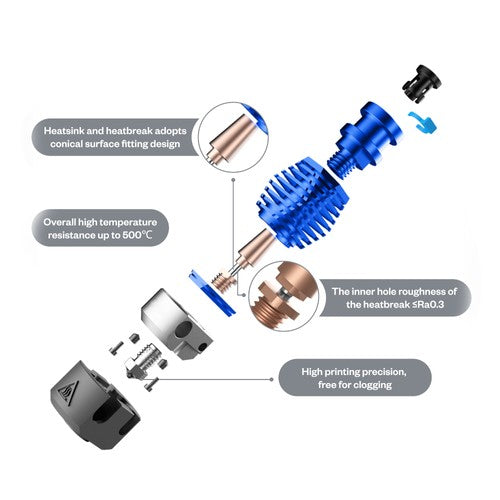

Heat sink and heat break adopt a conical surface fitting design.
Close-fitting increases heat dissipation contact area.
Low roughness of heat break.
The inner hole roughness of the heat break ≤Ra0.3, which allow a smoother movement of filament.
High printing precision, no filament plugging.
Specification
| General |
Brand: Phaetus |
| Specification | Nozzle Diameter: Plated copper 0.4/1.75mm, Hardened steel 0.4/1.75mm Size: φ24mmx75mm Material Processes: Aluminum heatsink Heat Cartridge: Ceramic heating element Applicable Materials: Compatible with all thermoplastic filaments, including but not limited to typical composite fiber filaments such as PLA, ABS, PETG, TPU, PP.PA, and PLA-CF, ABS-CF PETG-CF. PA-CF/GF, as well as composite filaments such as steel, wood, boron carbide, tungsten and fluorescence. |
| Weight & Size | Product Weight: 105g Package Weight: 130g Product Size(L x W x H): 10x6x4cm |
| Package Contents |
Hexagon bar (1.27/1.50/2.00 each) |
