Highlights

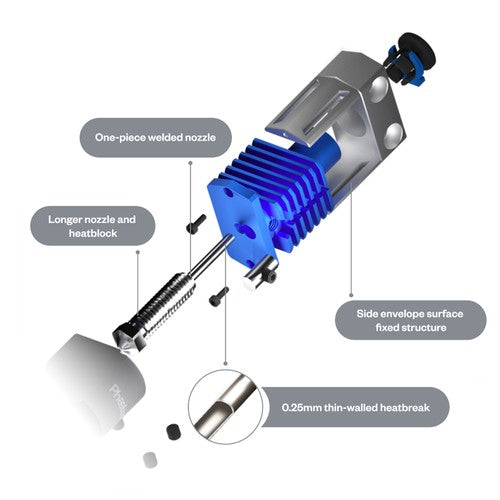

Side Envelope Surface Fixed Structure
Heat break kit adopts side envelope surface fixed structure stable and reliable with the possibility of quick replacement.
Heat Break Wall Thickness 0.25mm
Excellent heat insulation no filament blocking
The inner hole roughness of the heat break ≤Ra0.3, which allow a smoother movement of filament.
Lengthened Nozzle Design
Larger melting cavity suitable for high flow and high-speed printing
Integrated Welded Nozzle
Higher-strength better sealing, free from leakage
Nozzles Choices
Integrated welded nozzle in hardened steel nozzle / plated copper nozzle Various types of nozzles are available for printing different filaments including wear-resistant and high temperature resistant
Ultra-High Temp Resistant 350°C
Phaetus's new high temp-resistant silicone sock ensures safe printing at temperatures up to 350°C
All Filaments Compatible
Compatible with all filaments, including PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI, and composite materials containing abrasive additives, such as carbon fiber, steel, wood, boron carbide, tungsten and phosphorescent pigment
Specification
| General |
Brand: Phaetus |
| Specification | Nozzle: Integrated welded nozzle in hardened steel nozzle/ plated copper nozzle Material Processes: Aluminum heatsink, Plated copper nozzles / hardened steel nozzles Stainless steel thin-walled heat break Applicable Materials: Compatible with all thermoplastic filaments, including but not limited to typical composite fiber filaments such as PLA, ABS, PETG, TPU, PP.PA, and PLA-CF, ABS-CF PETG-CF. PA-CF/GF, as well as composite filaments such as steel, wood, boron carbide, tungsten and fluorescence. |
| Weight & Size | Product Weight: 54g Package Weight: 130g Product Size(L x W x H): 26x21x57.5mm |
| Package Contents |
Hexagon bar (1.27/1.50/2.00 each) |
