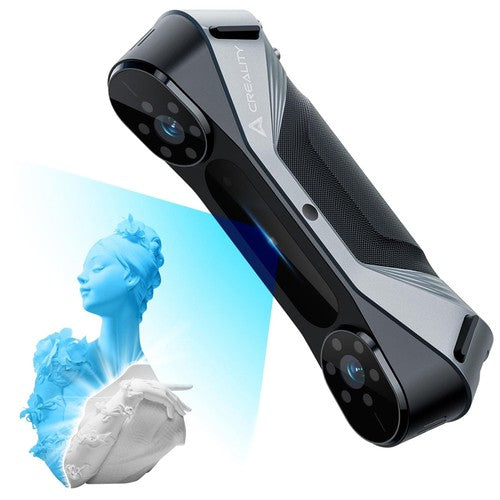

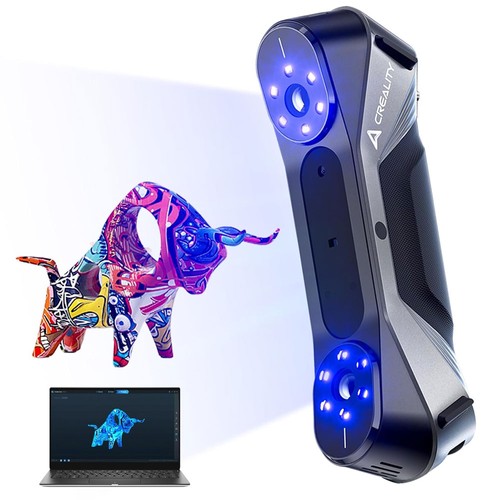

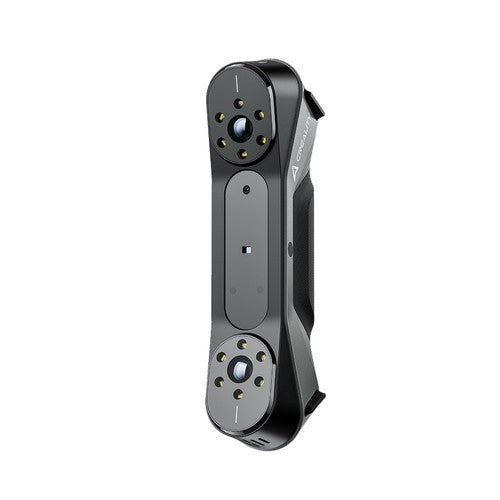

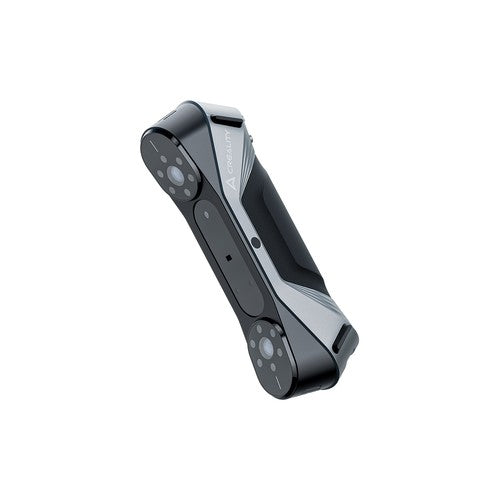

Creality CR-Scan Raptor - Blue Laser + Nir for Small, Medium and Large Objects
The Creality CR-Scan Raptor is a groundbreaking 3D scanner that integrates blue light laser and NIR - into one device! With unprecedented precision, the 3D scanner captures small, medium, and large objects, thus meeting a wide range of requirements.
- Combines blue light laser & NIR, scanning of small, medium, and large objects.
- ?7 parallel blue laser lines for fine scanning details, up to 0.1mm to obtain sharper and clear edges
- ?High-speed Scanning: ?Blue Light Scanning Speed up to 60fps;?NIR Scanning Speed up to 20fps
- ?Infrared Structured Light Scanning, No Marker Required
- ?Equipped with a unique face mapping algorithm?that captures more details, a human body scan only needs as quick as 2 minutes.
- ?System requirement: Windows 10/11 (64 bit): i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory or higher?macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB or higher
Compact size for more flexibility
The portable 3D scanner has a low weight of 372 g. It can be operated with one hand and ensures fatigue-free work even during longer scanning projects. The Raptor is equipped with an anti-slip surface and a removable neck cord for flexible operation with greater safety.
Large, medium, or small?
Combining blue line lasers with structured infrared light enables the detection of objects of all sizes! The CR-Scan Raptor detects objects in the scanning range from 5 x 5 x 5 mm; up to 2000 x 2000 x 2000 mm; with remarkable ease, including small figures, bolts, faces, human bodies, car parts and much, much more.
Measurement accuracy with blue light laser lines
The powerful CR-Scan Raptor scans with 7 parallel blue light laser lines. To ensure that sharp and clear edges and precise details can be captured, each laser line is kept ultra-thin (up to 0.1 mm). This ensures outstanding metrological accuracy of up to 0.02 mm.
Of course, other factors also contribute to its incredible accuracy:
- An advanced temperature compensation algorithm improves temperature stability, ensuring its top accuracy.
- A high-performance structure enables 3D scanning both from close up and from a distance and provides high stability at high and low temperatures. This is achieved by a 20 mm lens with a large depth of field, a low distortion lens (with distortion < 5‰), a glass lens with 9 lenses, and a metal lens barrel and mount.
Structured infrared light for scans without markers or scan sprays

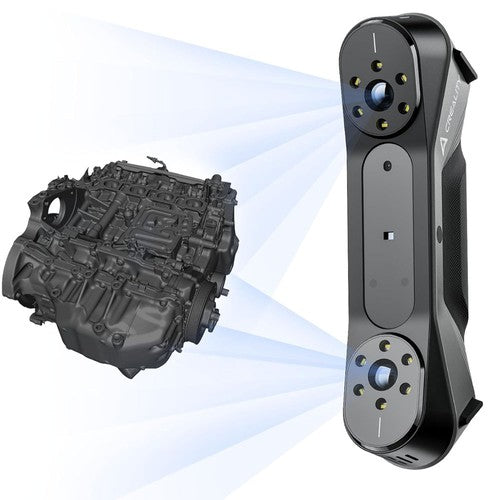

The CR-Scan Raptor uses 3D imaging with speckle matching, eliminating the need for markers for fast data capture, even on detailed parts and complex workpieces. Even without using a scanning spray, cars, car parts, tires, and other black objects and metal parts can be scanned without any problem.
A combination of blue and white light

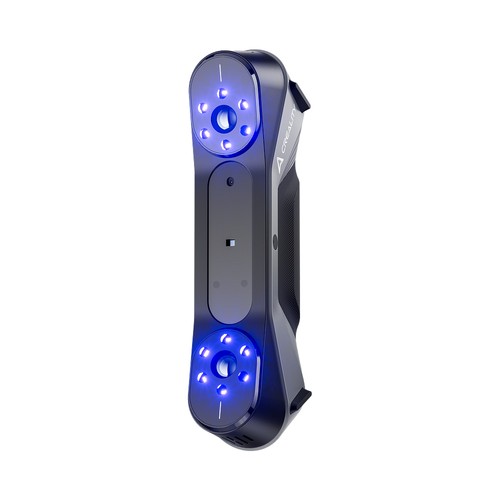

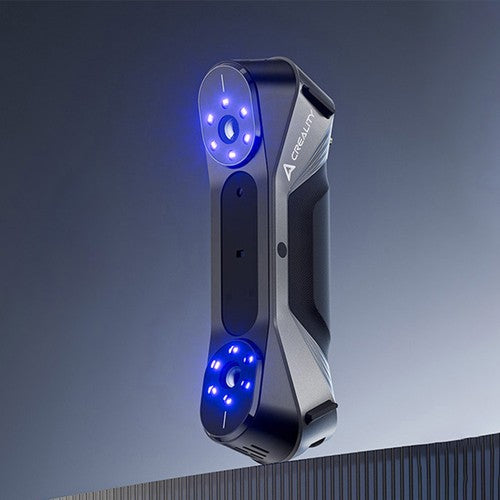

The circular arrangement of LED texture lights provides more realistic scanning results. While the blue light provides additional light for scanning laser lines, the white light increases the brightness of color textures.
Impressive speed
With an impressive scanning speed of up to 60 fps with the blue light laser and an NIR scanning speed of up to 20 fps, high-resolution scans with the finest details can be captured in a flash.
Face and body algorithm
A face and body mode features a unique facial imaging algorithm for better detail capture. With the CR-Scan Raptor, the entire human body can be scanned in just 2 minutes.
Additional features:
- 24-bit full-color scanning with 12 circular LED texture lights for true-to-life color reproduction,
- Intuitive buttons for easy operation, with a ring indicator light that shows the scanning status in real time,
- Smooth scanning processes through anti-shake protection such as One-Shot 3D imaging technology (for natural stability) or the fast retracing speed,
- High-precision calibration plate made of glass substrate,
- Wide range of applications: metrological testing, reverse engineering, manufacturing of car parts, medical technology, mold making, action figures, AR/VR, and much more
Hybrid Blue Laser & NIR, Metrology Grade Accuracy

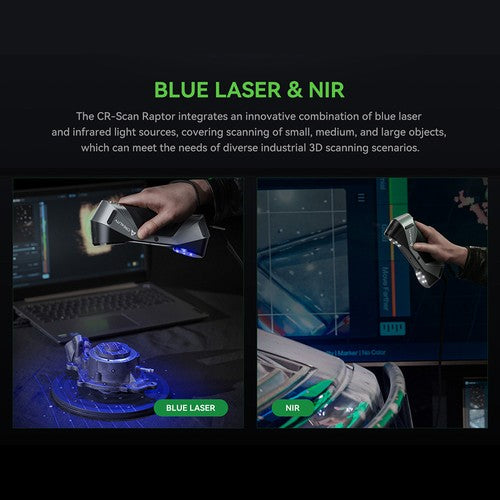

The CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios.

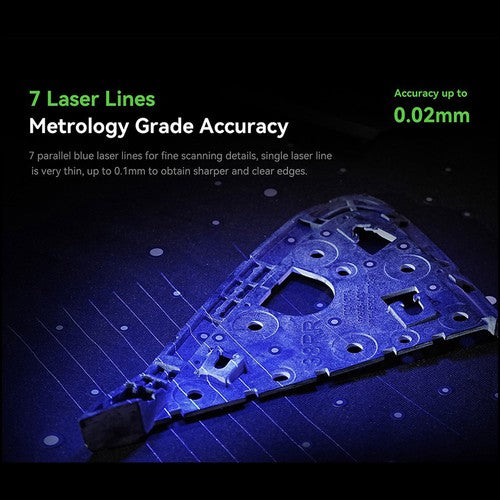

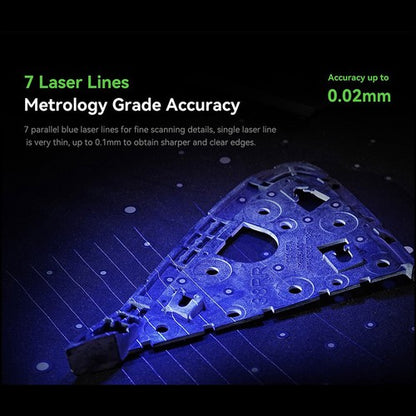

7 parallel blue laser lines for fine scanning details, single laser line is very thin, up to 0.1mm to obtain sharper and clear edges.
Blue Light Scanning Speed up to 60fps, NIR Scanning Speed up to 20fps

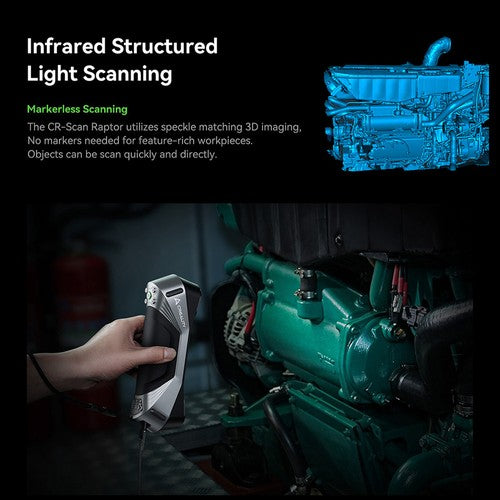

The CR-Scan Raptor utilizes speckle matching 3D imaging, no markers needed for feature-rich workpieces. Objects can be scan quickly and directly.

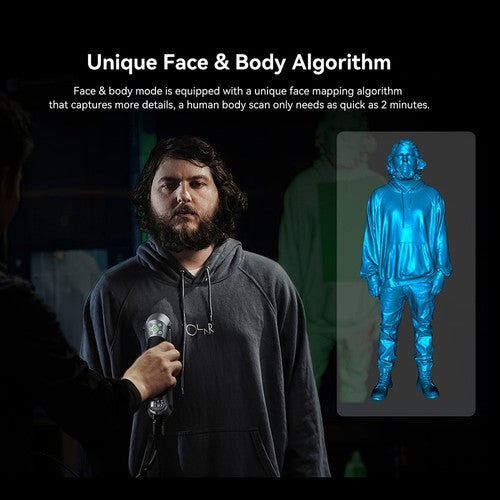

Face body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan only needs as quick as 2 minutes.
It can improve temperature stability and ensure accuracy.
The CR-Scan Raptor covers near and far distance scanning, and is equipped with good stability in high and low temperatures, providing reliable measurement scanning results.
Combining line lasers with infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5 mm3-2000*2000*2000 mm3. Effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more.
Equipped with One-Shot 3D imaging technology, the CR-Scan Raptor is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Even without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect.
Equipped with 12 circular LED texture lights, it can enhance the brightness of color mapping in dark environments and truly present the color of objects.
Dual-color circular LED texture lights can help achieve more realistic scanning results.

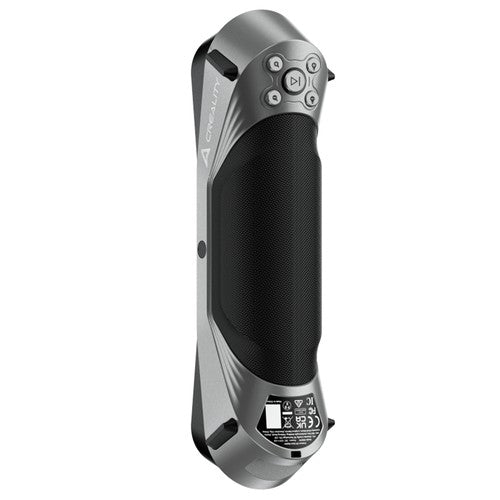

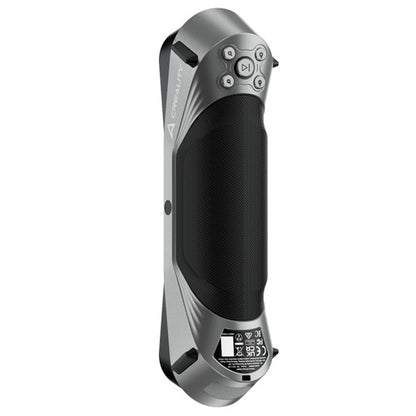

Ring indicator light, providing real-time scanning status feedback; Paired with buttons, it offers comfortable and straightforward operation.
Lightweight 372g, effectively reduces long-term work fatigue.
Utilizes high-precision glass substrate calibration board for accuracy calibration, you can maintain the high precision of the scanner, maintain accuracy.
Specification
| General | Brand: Creality Type: 3D Scanner Model: Raptor |
| Specification |
Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light) Blue Light(Blue 7-line laser) Mode: NIR(infrared binocular structured light) Mode: General Parameters: |
| Weight & Size | Product Weight: 2kg Package Weight: 3.18kg? Package Size(L x W x H): 34.8x16x30.7cm |
| Package Contents | 1 x 3D Scanner 1 x Power Cord 1 x User Manual |
