Highlights
Creality CR Scan Otter in a nutshell

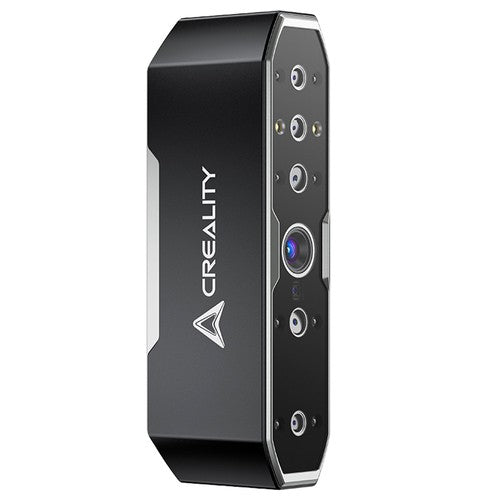

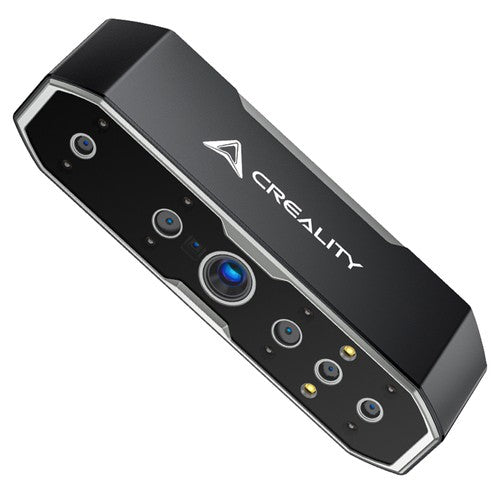

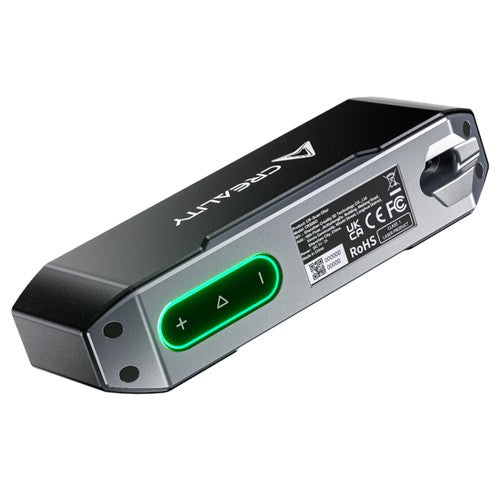

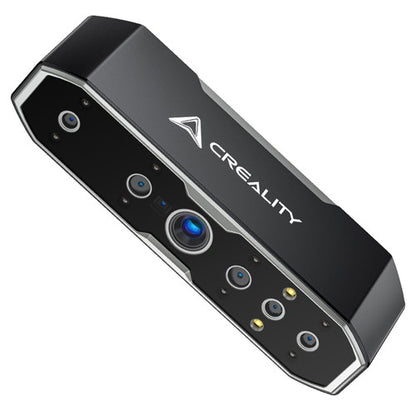

The Creality CR-Scan Otter is a small-to-mid-scale NIR (near-infrared) scanner that can both run and swim; a poetic nod to the scanner’s increased versatility.? The handheld scanner is equipped with four lenses that can scan in 24-bit color with high detail. It has a wide range, with the ability to capture objects as small as 10mm up to 2000mm. It has an anti-shaking feature for smooth scanning and reportedly can capture black and metal objects without the need for a spray coating. The Otter also offers some hand-holding quality-of-life improvements, including color LED lighting to indicate tracking and distance quality from the scanned object and physical buttons for direct control of operations.
- 20fps Scan Speed
- 0.02mm Accuracy
- 4-lens Stereo Vision
- 24-bit Full-Color Scanning
- 8 Infrared Lights

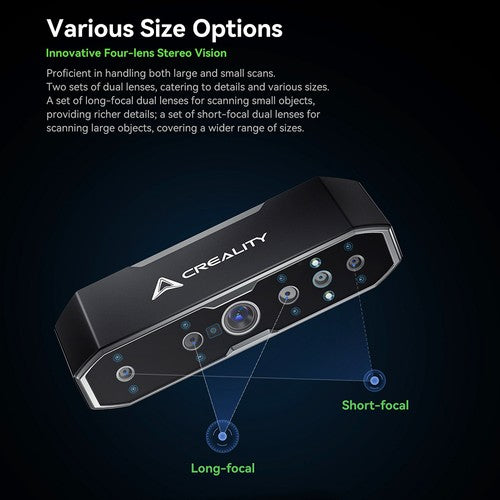

Innovative Four-lens Stereo Vision
Two sets of dual lenses, catering to details and various sizes. A set of long-focal dual lenses for scanning small objects, providing richer details; a set of short-focal dual lenses for scanning large objects, covering a wider range of sizes.
Ultra-High Precision
Otter adopts the state-of-the-art structure-light stereo-matching algorithm and optical design to faithfully reproduce the authentic texture and contours of objects. The scanning accuracy of up to 0.02mm ensures every detail is sharp and clear.
Anti-shake, Smooth, and Efficient Scanning
Equipped with One-Shot 3D imaging technology, the CR-Scan Otter is naturally stabilized and less likely to track loss. Fast backtracking speed ensures smoother handheld scanning. Scanning speed up to 20 fps.
Scan Black/Metal Objects Without Spraying
Even without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect.
Outdoor Scanning?
Engineered with advanced DOE (Diffractive Optical Element) 3D structure-light technology, CR-Scan Otter has higher environmental adaptability and maintains excellent performance even in sunlight (<30000 lux).
Clear Capture with Built-in Lights?
Even in low-light environments, this allows for the most realistic texture effects. Two supplemental LEDs help precisely capture details, faithfully reproducing the color and texture of objects.
24-bit Full-Color Scanning
Equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm, ensuring exceptional capture of model details and colors.
Supports Marker Scanning
With 8 infrared lights, it better tracks marker points, applicable to objects with fewer scanning features. Under marker mode, it will achieve higher accuracy.
Specification
| General | Brand: Creality Type: 3D Scanner Model: Otter |
| Specification | Accuracy: Up to 0.02mm @60mm 3D Resolution: 0.05-2mm Scanning Speed: Up to 20fps Min. Scan Volume: 10mm x 10mm x 10mm Single Capture Range: Max.1350x840mm@1000mm Technology: Infrared structured light Working Distance: 110mm-1000mm Color Mapping: Yes Alignment Modes: Geometry/Marker/Texture Output Format: OBJ/STL/PLY IMU: Yes Color Supplemental Light: 2 white LEDS Marker Recognition: Enhancement 8 infrared LEDs Laser Safety: Class I (eye safe) System Support: Windows/macos(*Wireless scanning accessories are required for iPhone iOS/Android) Wireless Scanning: Supported in conjunction with future wireless scanning accessories Buttons: Touch Audible prompt: Yes Operating Temperature: -10°C to 40°C Operating Humidity: 0-90%RH Input Power: 5V3A Data Interface: Type C/USB3.0/USB2.0 |
| Weight & Size | Product Weight: 1.2kg Package Weight: 1.62kg Package Size(L x W x H): 22x9.5x26.5cm |
| Package Contents | 1 x 3D Scanner |
